High quality reflective street name signs for every application

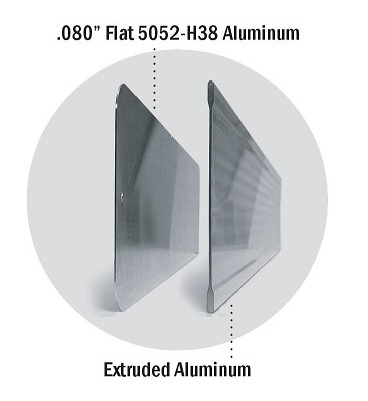

- Single faced / Double faced / Extruded Aluminum
- 3M HIP and DG3 sheeting meets all MUTCD specs for reflectivity
- Custom manufactured sign plates to your specific needs
- Brackets for flat and extruded sign plates
- Punching available for all standard sign brackets
- Street plate hardware available
- 3M HIP and DG3 sheeting meets all MUTCD specs for reflectivity
- Custom manufactured sign plates to your specific needs
- Brackets for flat and extruded sign plates
- Punching available for all standard sign brackets
- Street plate hardware available
The lettering for names of streets and highways on street name signs shall be composed of a combination of lower-case letters with initial upper-case letters.
The street name sign shall be retroreflective or illumintaed to show the same shape and similar color both day and night. The only acceptable background colors for street name signs shall be green, blue, brown, or white.
Lettering on post-mounted street name signs should be composed of initial upper-case letters at least 6 inches in height and lower-case letters at least 4.5 inches in height. On multi-lane streets with speed limits greater than 40 mph, the lettering on post-mounted street name signs should be composed of initial upper-case letters at least 8 inches in height and lower-case letters at least 6 inches in height.
The Street Name sign shall be retroreflective or illuminated to show the same shape and similar color
both day and night. The color of the legend (and border, if used) shall contrast with the background color
of the sign.
The street name sign shall be retroreflective or illumintaed to show the same shape and similar color both day and night. The only acceptable background colors for street name signs shall be green, blue, brown, or white.
Lettering on post-mounted street name signs should be composed of initial upper-case letters at least 6 inches in height and lower-case letters at least 4.5 inches in height. On multi-lane streets with speed limits greater than 40 mph, the lettering on post-mounted street name signs should be composed of initial upper-case letters at least 8 inches in height and lower-case letters at least 6 inches in height.
The Street Name sign shall be retroreflective or illuminated to show the same shape and similar color
both day and night. The color of the legend (and border, if used) shall contrast with the background color
of the sign.
Type of Mounting | Type of Street or Highway | Speed Limit | Initial Upper-case | Lower-case |
Overhead | All types | All speed Limits | 12 inches | 9 inches |
Post-Mounted | Multi-lane | More than 40 mph | 8 inches | 6 inches |
Post-Mounted | Multi-lane | 40 mph or less | 6 inches | 4.5 inches |
Post-Mounted | 2-lane | All speed limits | 6 inches | 4.5 inches |
Recommended Minimum Letter Heights on Street Name Signs
Street Signs
Street Signs are everywhere. Legible, more visible street signs help drivers navigate more safely and easily, which helps to reduce potential crashes and improve traffic flow. Streets clearly marked with reflective street signs help emergency vehicles reach their destination faster. Whether you're a municipality that needs new street signs or someone who is looking for a custom street sign to hang in their home or on their property, we can help!
MUTCD Scope of Conventional Road Guide Street Sign Standards

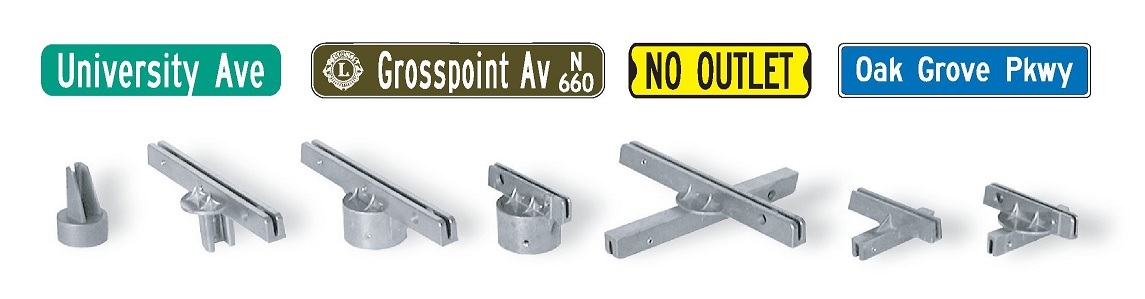

Street Name Sign Hardware & Crossposts

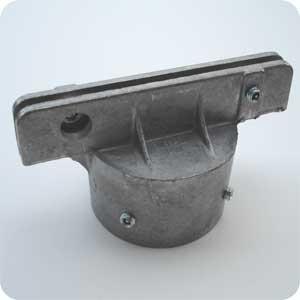

Tubular Street Sign Post Crosspiece

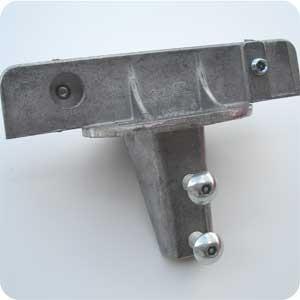

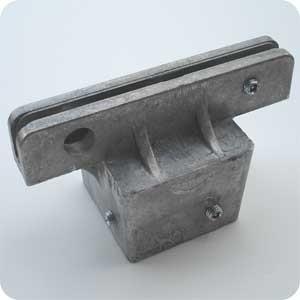

Square Street Sign Post Crosspiece
Channel Post Street Sign Bracket
Adjustible Street Sign Bracket
Metrowing 6" Street Sign Bracket
Straps or bolts to side of wall or pole to secure a 6" flat or extruded street name sign
Metrowing 9" Street Sign Bracket
Straps or bolts to side of wall or pole to secure a 9" flat or extruded street name sign
